Wi-Fi HEATMAPPING

Altheus Infrared does all things heat...
including Wi-Fi Heatmapping!

We use the latest technology to generate a Wi-Fi map of your hotel, residence or office suite.

No need to wrestle with dropped Wi-Fi signals, low upload or download speeds... A heatmap will show you where the signal is weakest & where it's the strongest.

Use the easy to understand maps to add boosters or extenders, or move existing access points to cover weak areas.

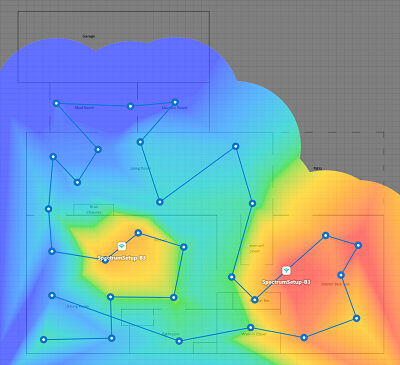

Residence heatmap Wi-Fi signal strength - initial scan

This heatmap shows the signal strength coming from a single router broadcasting in two frequencies (2.4Ghz & 5Ghz). The color scale shows a strong signal in red & yellow, while a poor signal is in green to blue. The customer had poor coverage in the upper left corner of the residence.

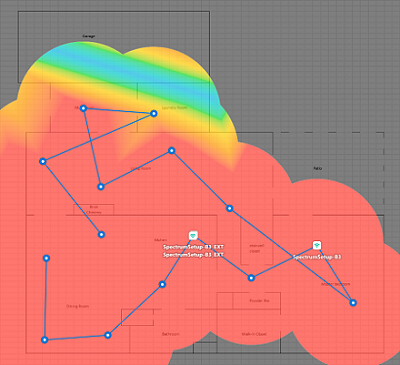

Residence heatmap Wi-Fi signal strength after adding extender


The customer used the heatmap to place an extender (booster) to expand coverage... now the entire living space is within the red (excellent) coverage zone.  The heatmap discovered the .EXT Wi-Fi booster which extended the coverage.

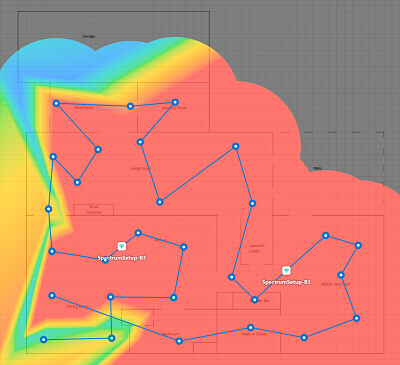

Download speed heatmap at initial scan

The customer experienced slow download speed when working at the dining room table (lower left corner of the map).

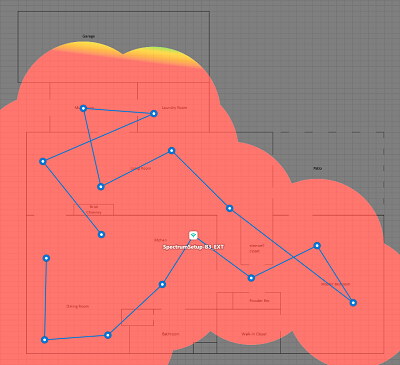

Download speed heatmap after adding an extender

Using the heatmap information, the extender was placed to cover the cold spots (weak signal areas), resulting in excellent uniform coverage.

The amount of data we can collect for a Heatmap is amazing...

  • Signal Level
  • Signal to Noise Ratio
  • Signal to Interference Ratio
  • Secondary Signal Levels
  • Quantity of Access Points
  • Frequency Band Coverage
  • PHY Mode Coverage (a, b, g, n, ac, ax, be)
  • Download Speed
  • Upload Speed
  • Wireless Transmit Rate

Plus, the software will provide visualization data on:

  • Issues with the Signal to Noise Ratio
  • Low Signal Level
  • Overlapping Channels
  • Low Secondary Signal Levels
